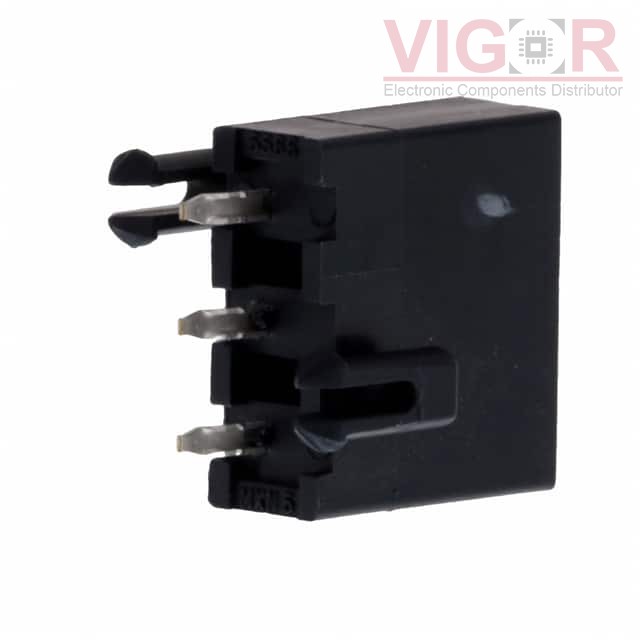

Image is for reference,
please contact us to get the real picture

Part No :

1726470103

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 3POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
1726470103 PDF
Availability
0 pieces
Unit Price
$0.81000

Current price of 1726470103 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1726470103 Specifications
Type Description
Series:Mini-Fit Jr 172647
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.492" (12.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock, Glow Wire Compliant
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
