EHT-117-01-S-D-SM-LC-K

EHT-117-01-S-D-SM-LC-K

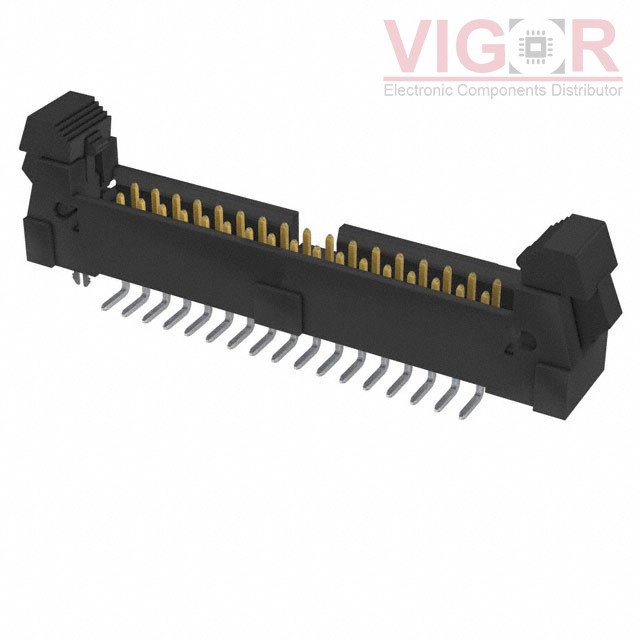

Image is for reference,
please contact us to get the real picture

Part No :

EHT-117-01-S-D-SM-LC-K

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 34POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
EHT-117-01-S-D-SM-LC-K PDF
Availability
0 pieces
Unit Price
$17.71000

Current price of EHT-117-01-S-D-SM-LC-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EHT-117-01-S-D-SM-LC-K Specifications
Type Description
Series:EHT
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.370" (9.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock, Keying Slot, Pick and Place
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
