HTSW-105-21-T-D

HTSW-105-21-T-D

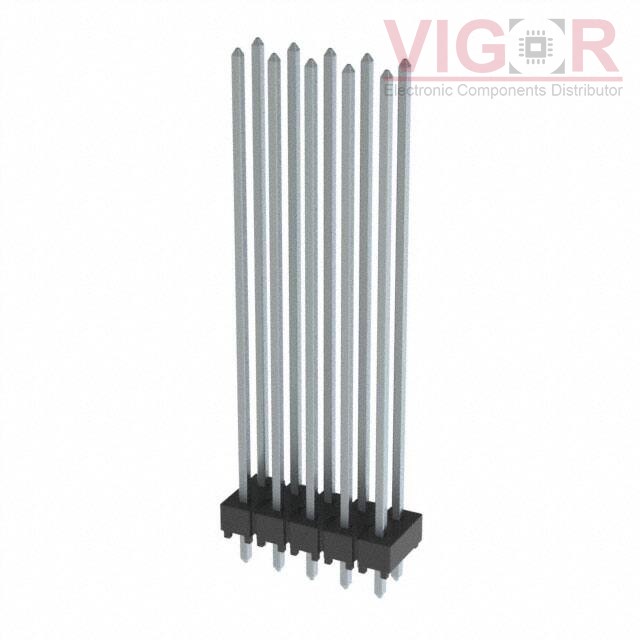

Image is for reference,
please contact us to get the real picture

Part No :

HTSW-105-21-T-D

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 10POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
HTSW-105-21-T-D PDF
Availability
238 pieces
Unit Price
$0.97000

Current price of HTSW-105-21-T-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HTSW-105-21-T-D Specifications
Type Description
Series:HTSW
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:1.220" (30.99mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:1.430" (36.32mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
