FTSH-120-01-LM-DV-P-TR

FTSH-120-01-LM-DV-P-TR

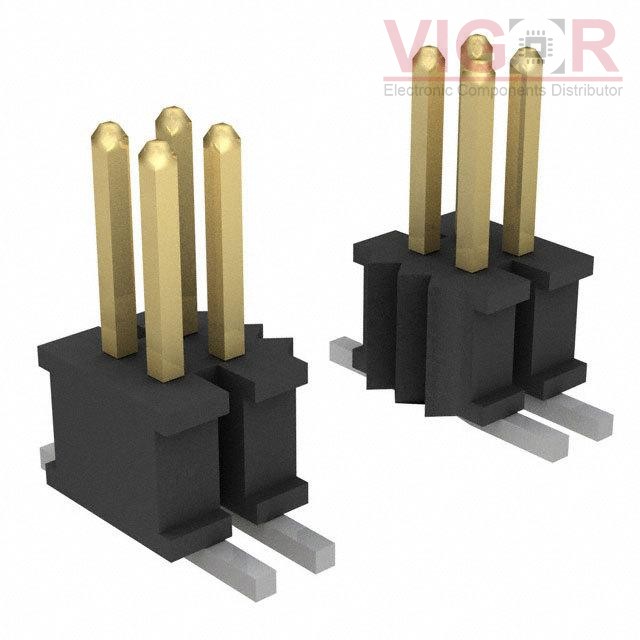

Image is for reference,
please contact us to get the real picture

Part No :

FTSH-120-01-LM-DV-P-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 40POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
FTSH-120-01-LM-DV-P-TR PDF
Availability
0 pieces
Unit Price
$6.56296

Current price of FTSH-120-01-LM-DV-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FTSH-120-01-LM-DV-P-TR Specifications
Type Description
Series:FTSH
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.099" (2.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Pick and Place
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3.4A per Contact
Voltage Rating:-
