DF3EA-4P-2H(24)

DF3EA-4P-2H(24)

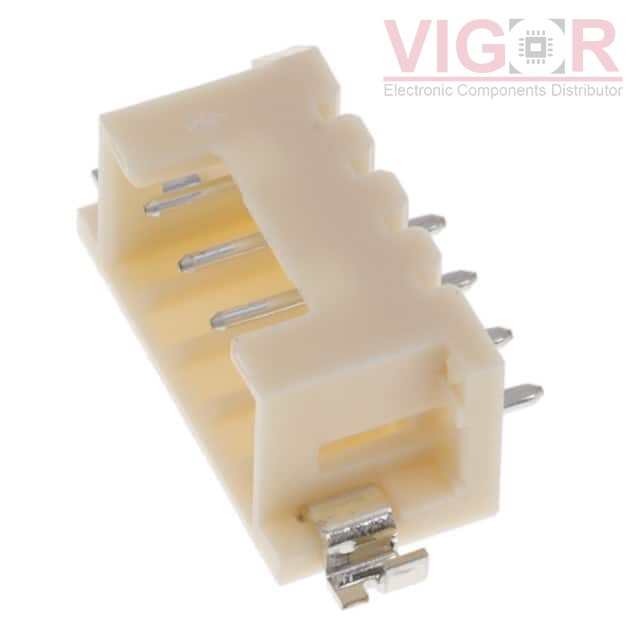

Image is for reference,
please contact us to get the real picture

Part No :

DF3EA-4P-2H(24)

Manufacturer
Hirose
Description
CONN HEADER SMD R/A 4POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
DF3EA-4P-2H(24) PDF
Availability
4290 pieces
Unit Price
$0.67000

Current price of DF3EA-4P-2H(24) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF3EA-4P-2H(24) Specifications
Type Description
Series:DF3
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.220" (5.60mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
