244840

244840

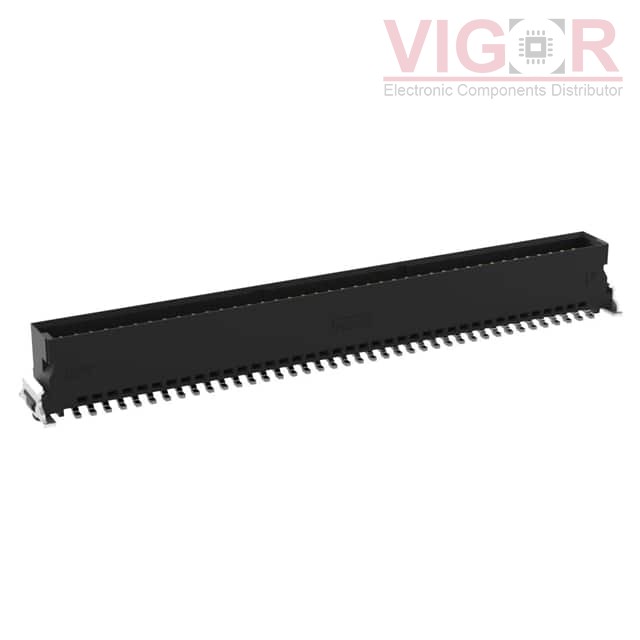

Image is for reference,
please contact us to get the real picture

Part No :

244840

Manufacturer
ERNI Electronics
Description
SMC M VERT Q 80POS SMT 1.75MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
244840 PDF
Availability
174 pieces
Unit Price
$9.50000

Current price of 244840 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

244840 Specifications
Type Description
Series:SMC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:80
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.266" (6.76mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide, Pick and Place, Solder Retention
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.7A per Contact
Voltage Rating:-
