0348302001

0348302001

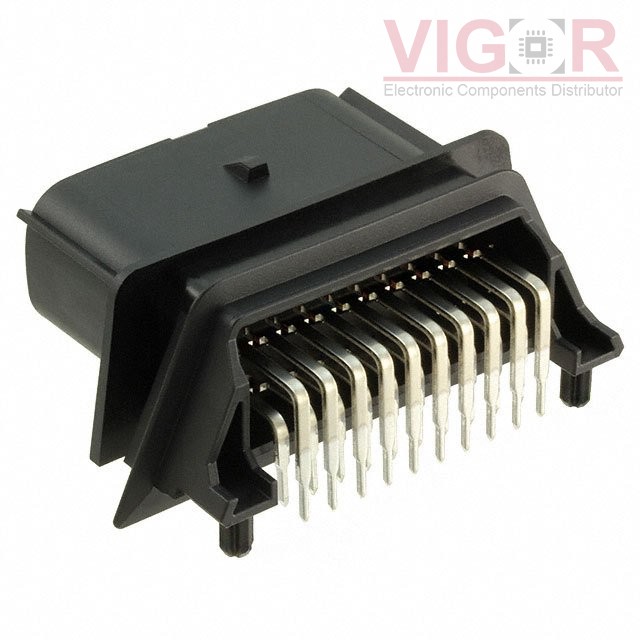

Image is for reference,
please contact us to get the real picture

Part No :

0348302001

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 20POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
0348302001 PDF
Availability
727 pieces
Unit Price
$7.84000

Current price of 0348302001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0348302001 Specifications
Type Description
Series:MX150 34830
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.138" (3.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.138" (3.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.996" (25.29mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 125°C
Ingress Protection:IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:14VDC
