HTST-105-01-F-DV-P-TR

HTST-105-01-F-DV-P-TR

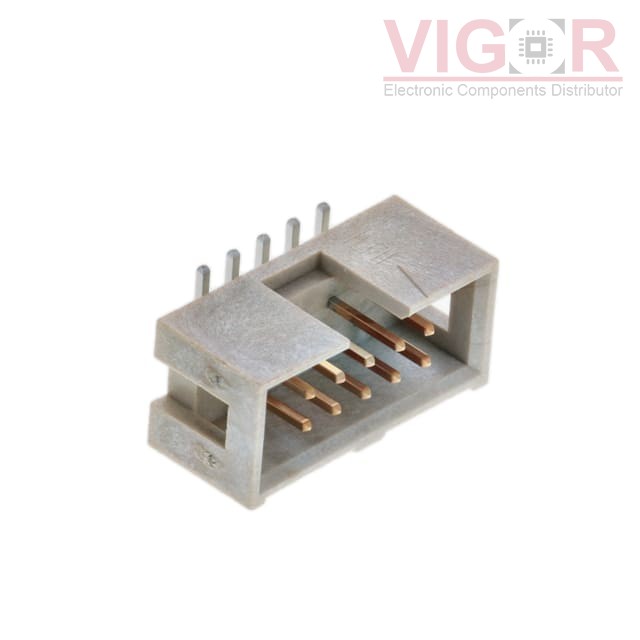

Image is for reference,
please contact us to get the real picture

Part No :

HTST-105-01-F-DV-P-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 10POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
HTST-105-01-F-DV-P-TR PDF
Availability
151 pieces
Unit Price
$2.55000

Current price of HTST-105-01-F-DV-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HTST-105-01-F-DV-P-TR Specifications
Type Description
Series:Flex Stack, HTST
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.250" (6.35mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.350" (8.89mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.00µin (0.076µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Keying Slot, Pick and Place
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3.4A per Contact
Voltage Rating:-
