2336491-4

2336491-4

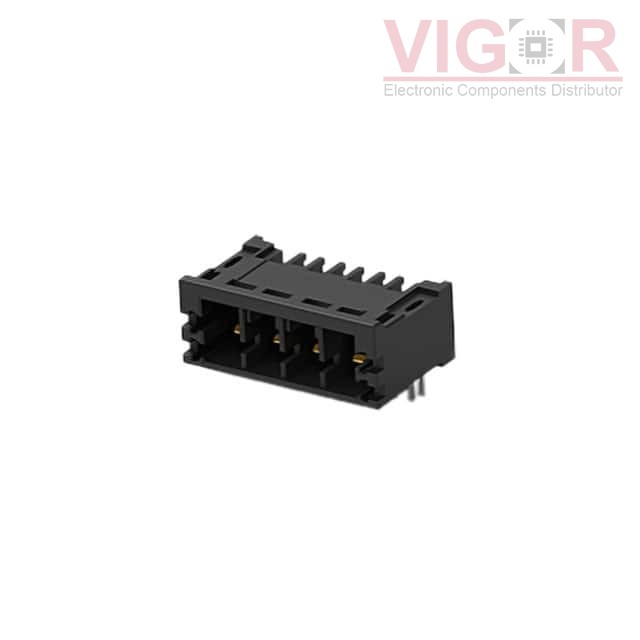

Image is for reference,
please contact us to get the real picture

Part No :

2336491-4

Manufacturer
TE Connectivity AMP Connectors
Description
D2970 HDR 270 DEGREE 4POSN 1ROW
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
2336491-4 PDF
Availability
0 pieces
Unit Price
$3.17000

Current price of 2336491-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2336491-4 Specifications
Type Description
Series:Dynamic D-2970
Package:Box
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.197" (5.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.102" (2.60mm)
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:300V
