DF14-10P-1.25H(26)

DF14-10P-1.25H(26)

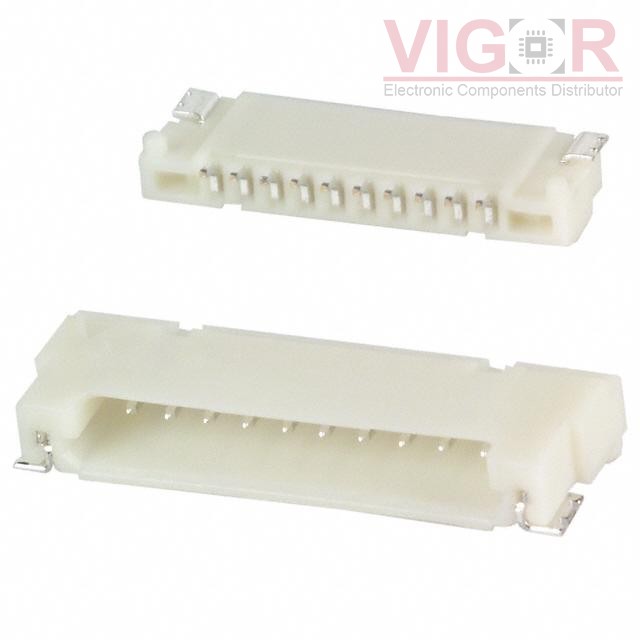

Image is for reference,
please contact us to get the real picture

Part No :

DF14-10P-1.25H(26)

Manufacturer
Hirose
Description
CONN HEADER SMD R/A 10POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
DF14-10P-1.25H(26) PDF
Availability
0 pieces
Unit Price
$0.79500

Current price of DF14-10P-1.25H(26) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF14-10P-1.25H(26) Specifications
Type Description
Series:DF14
Package:Tape & Reel (TR)
Part Status:Last Time Buy
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.086" (2.20mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Copper
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
