2-292208-2

2-292208-2

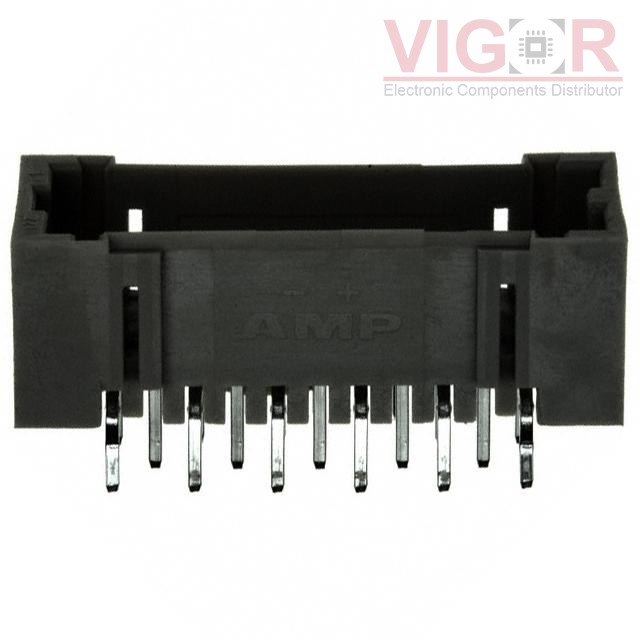

Image is for reference,
please contact us to get the real picture

Part No :

2-292208-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 22POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
2-292208-2 PDF
Availability
0 pieces
Unit Price
$1.62000

Current price of 2-292208-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2-292208-2 Specifications
Type Description
Series:Mini CT
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:22
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.114" (2.90mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.291" (7.40mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50VAC
