0348300801

0348300801

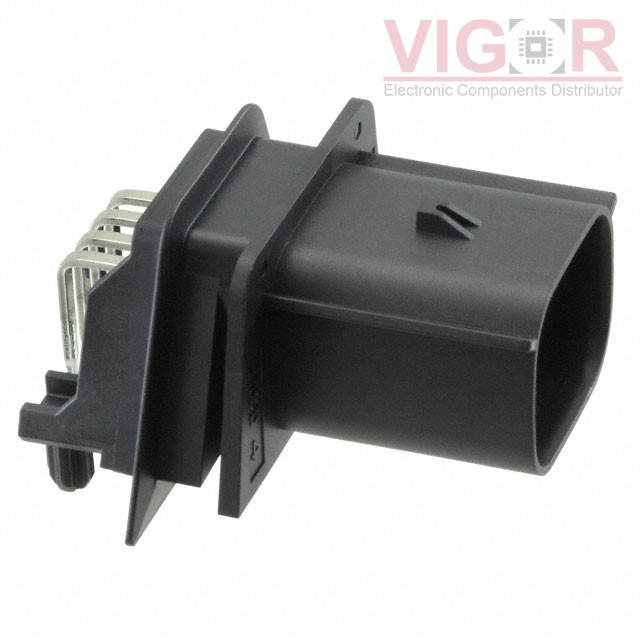

Image is for reference,
please contact us to get the real picture

Part No :

0348300801

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 8POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
0348300801 PDF
Availability
567 pieces
Unit Price
$4.96000

Current price of 0348300801 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0348300801 Specifications
Type Description
Series:MX150 34830
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.138" (3.50mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.138" (3.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.014" (25.75mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 125°C
Ingress Protection:IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:14VDC
