ATF13-6P-BM01

ATF13-6P-BM01

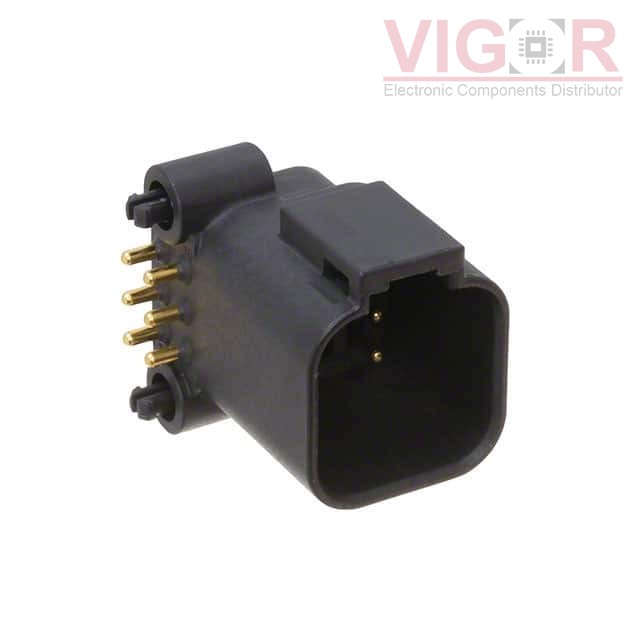

Image is for reference,
please contact us to get the real picture

Part No :

ATF13-6P-BM01

Manufacturer
Tuchel / Amphenol
Description
BOARD MOUNT HEADER, RIGHT ANGLE,
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
ATF13-6P-BM01 PDF
Availability
40 pieces
Unit Price
$13.94000

Current price of ATF13-6P-BM01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATF13-6P-BM01 Specifications
Type Description
Series:BoardLock™ AT
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:0.174" (4.42mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.843" (21.41mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Lock
Operating Temperature:-55°C ~ 125°C
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):13A
Voltage Rating:250VDC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

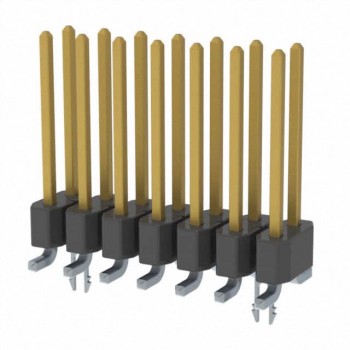

HOT TSM-107-03-S-DV-LC

TSM-107-03-S-DV-LC

CONN HEADER SMD 14POS 2.54MM

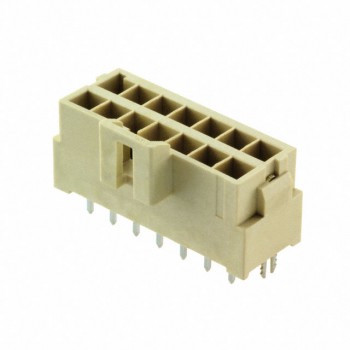

HOT 1722992214

1722992214

CONN HEADER VERT 14POS 3.5MM

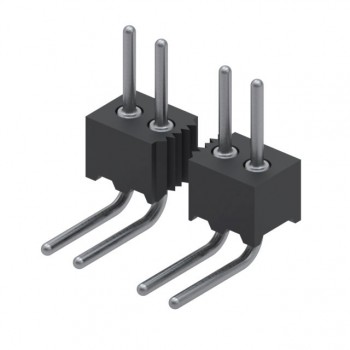

HOT 850-90-050-20-001000
