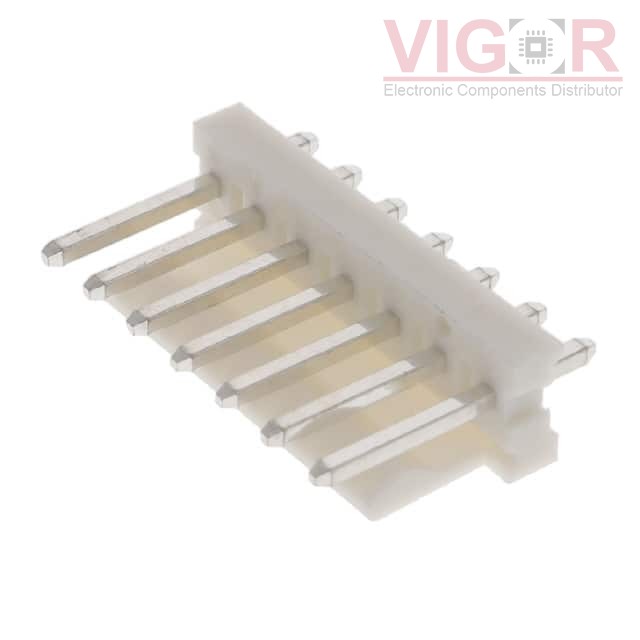

LHD-07-TS

Image is for reference,
please contact us to get the real picture

Part No :: LHD-07-TS

Manufacturer: Adam Tech

Description: CONN HEADER VERT 7POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: LHD-07-TS PDF

Availability: 3000 pieces

Unit Price: ~~$0.24000~~

Current price of LHD-07-TS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LHD-07-TS Specifications

Type	Description
Series:	LHD
Package:	Bag
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	7
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.448" (11.38mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	0.715" (18.16mm)
Insulation Height:	0.425" (10.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	White
Current Rating (Amps):	7A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
