M80-8430242

M80-8430242

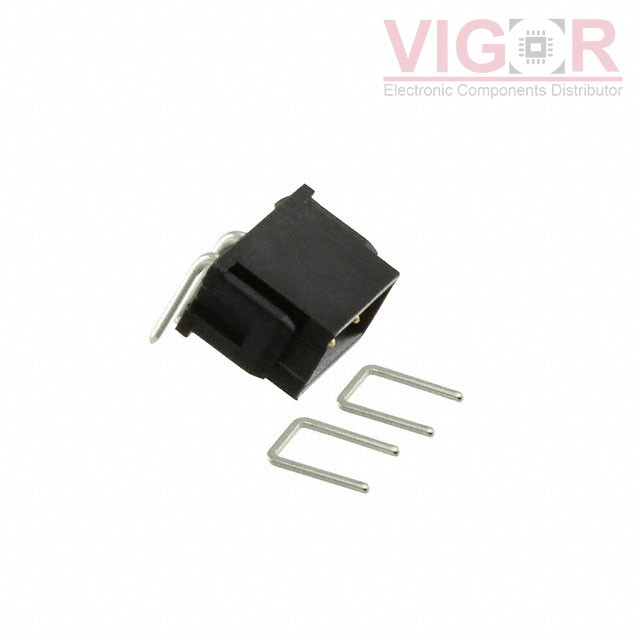

Image is for reference,
please contact us to get the real picture

Part No :

M80-8430242

Manufacturer
Harwin
Description
CONN HEADER R/A 2POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
M80-8430242 PDF
Availability
546 pieces
Unit Price
$1.84000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of M80-8430242 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

M80-8430242 Specifications
Type Description
Series:Datamate L-Tek
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.156" (3.96mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:29.5µin (0.75µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Strain Relief Clips
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.2A
Voltage Rating:120V
