EHT-125-01-L-D-RA

EHT-125-01-L-D-RA

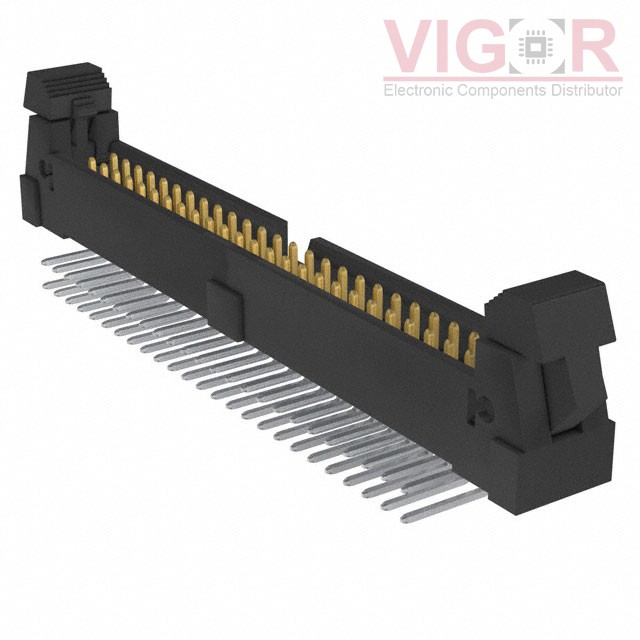

Image is for reference,
please contact us to get the real picture

Part No :

EHT-125-01-L-D-RA

Manufacturer
Samtec, Inc.
Description
CONN HEADER R/A 50POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
EHT-125-01-L-D-RA PDF
Availability
20 pieces
Unit Price
$12.47000

Current price of EHT-125-01-L-D-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EHT-125-01-L-D-RA Specifications
Type Description
Series:EHT
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:50
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.300" (7.62mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
