5007620481

5007620481

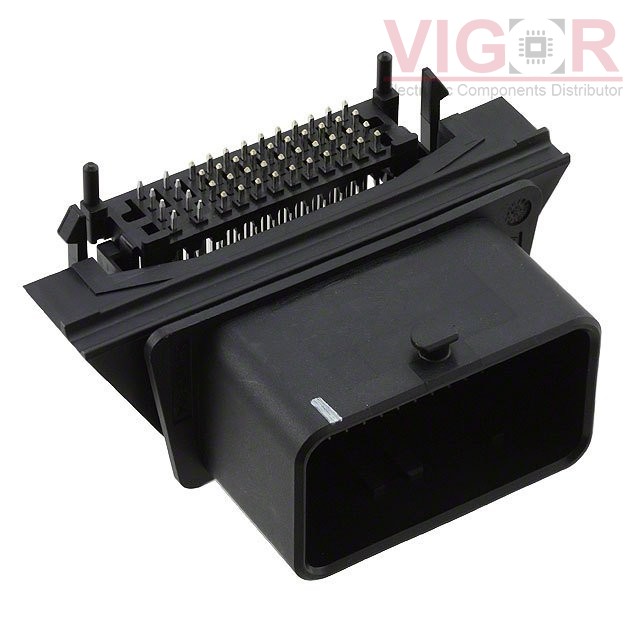

Image is for reference,
please contact us to get the real picture

Part No :

5007620481

Manufacturer
Woodhead - Molex
Description
CONN HEADER BRD EDGE 48POS
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
5007620481 PDF
Availability
895 pieces
Unit Price
$8.86000

Current price of 5007620481 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5007620481 Specifications
Type Description
Series:CMC 500762
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:48
Number of Rows:4
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.063" (27.00mm)
Contact Shape:-
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide, Board Lock, Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
