802-80-038-66-001101

802-80-038-66-001101

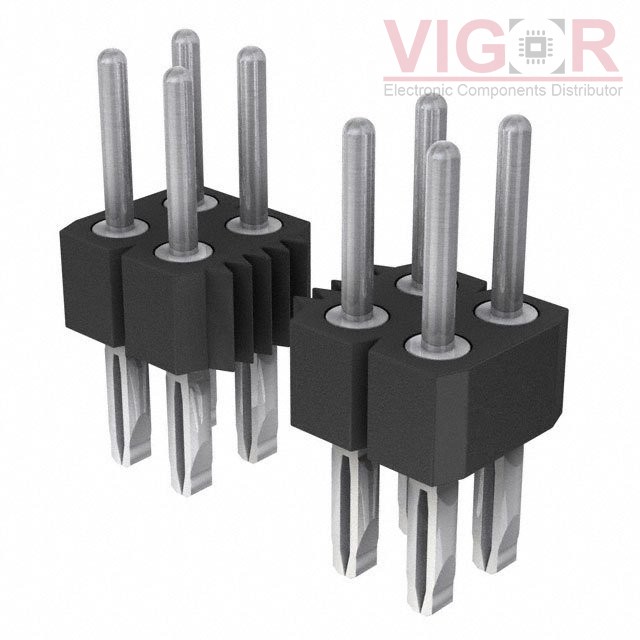

Image is for reference,
please contact us to get the real picture

Part No :

802-80-038-66-001101

Manufacturer
Preci-Dip
Description
CONN HEADER VERT 38POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
802-80-038-66-001101 PDF
Availability
0 pieces
Unit Price
$4.77870

Current price of 802-80-038-66-001101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

802-80-038-66-001101 Specifications
Type Description
Series:802
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:38
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.191" (4.85mm)
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:0.467" (11.85mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Bronze
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:150VDC
