78548-154HLF

78548-154HLF

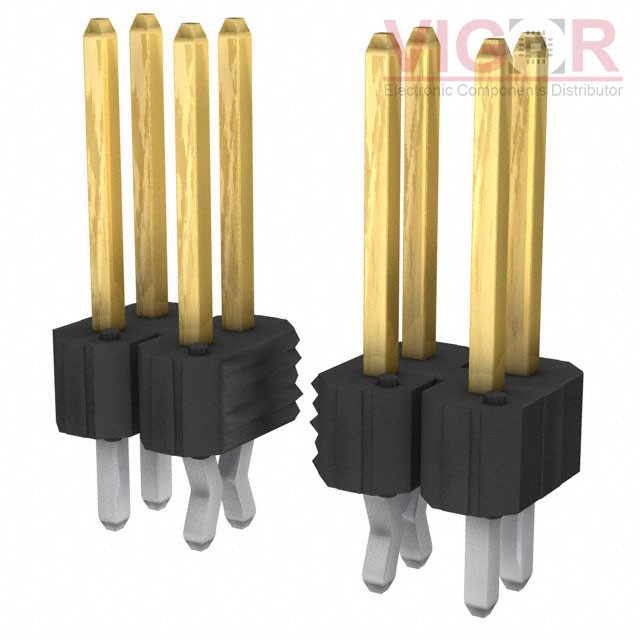

Image is for reference,
please contact us to get the real picture

Part No :

78548-154HLF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER VERT 54POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
78548-154HLF PDF
Availability
0 pieces
Unit Price
$1.19103

Current price of 78548-154HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

78548-154HLF Specifications
Type Description
Series:BERGSTIK® II
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:54
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.318" (8.08mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.538" (13.67mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold, GXT™
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
