AWHW2-10G-0202-T-R

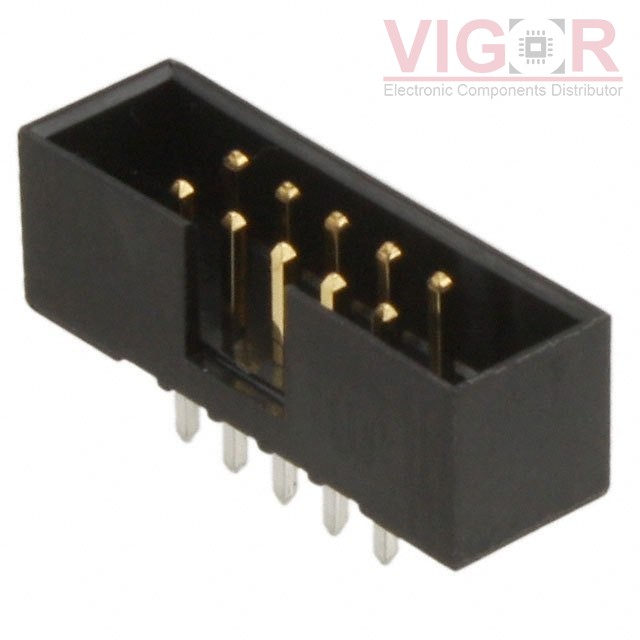

Image is for reference,
please contact us to get the real picture

Part No :: AWHW2-10G-0202-T-R

Manufacturer: ASSMANN WSW Components

Description: CONN HEADER VERT 10POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: AWHW2-10G-0202-T-R PDF

Availability: 354 pieces

Unit Price: ~~$1.00000~~

Current price of AWHW2-10G-0202-T-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWHW2-10G-0202-T-R Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.157" (4.00mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	-
Insulation Height:	0.226" (5.74mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA9T), Nylon 9T, Glass Filled
Features:	Keying Slot
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1.5A
Voltage Rating:	-
