DT15-12PD-B016

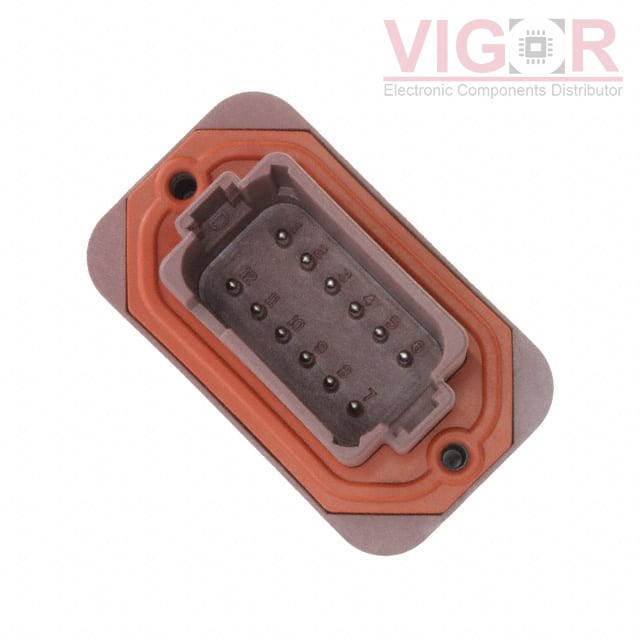

Image is for reference,
please contact us to get the real picture

Part No :: DT15-12PD-B016

Manufacturer

Description: CONN HEADER VERT 12POS 4.44MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: DT15-12PD-B016 PDF

Availability: 0 pieces

Unit Price: ~~$16.76000~~

Current price of DT15-12PD-B016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DT15-12PD-B016 Specifications

Type	Description
Series:	DT
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.175" (4.44mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.360" (9.14mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.122" (3.10mm)
Overall Contact Length:	-
Insulation Height:	1.371" (34.82mm)
Contact Shape:	Circular
Contact Finish - Mating:	-
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	-
Insulation Material:	Plastic
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Brown
Current Rating (Amps):	-
Voltage Rating:	250VDC
