Current price of IL-AG5-5PK-S3L2-LB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | IL-AG5 |
Package: | Tube |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.098" (2.50mm) |
Number of Positions: | 5 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole, Right Angle |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.331" (8.40mm) |
Contact Length - Post: | 0.138" (3.50mm) |
Overall Contact Length: | - |
Insulation Height: | 0.433" (11.00mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Brass |
Insulation Material: | Polybutylene Terephthalate (PBT) |
Features: | Board Guide |
Operating Temperature: | -40°C ~ 85°C |
Ingress Protection: | - |
Material Flammability Rating: | - |
Insulation Color: | Blue |
Current Rating (Amps): | 3A per Contact |
Voltage Rating: | - |

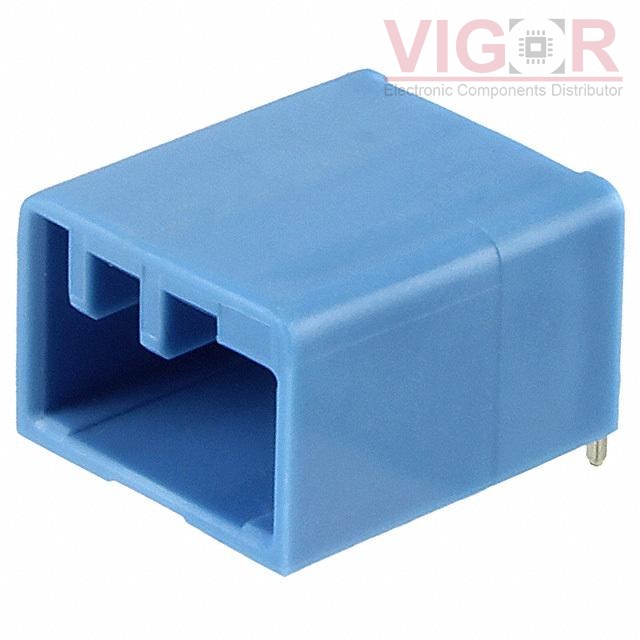

CONN HEADER R/A 5POS 2.5MM
