1723162308

1723162308

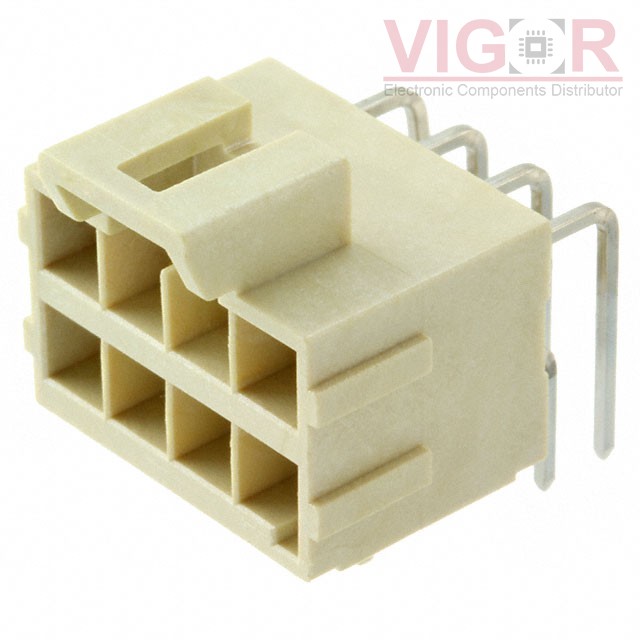

Image is for reference,
please contact us to get the real picture

Part No :

1723162308

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 8POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
1723162308 PDF
Availability
1 pieces
Unit Price
$3.61000

Current price of 1723162308 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1723162308 Specifications
Type Description
Series:Ultra-Fit 172316
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.181" (4.60mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.534" (13.56mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:400V
