0422271059

0422271059

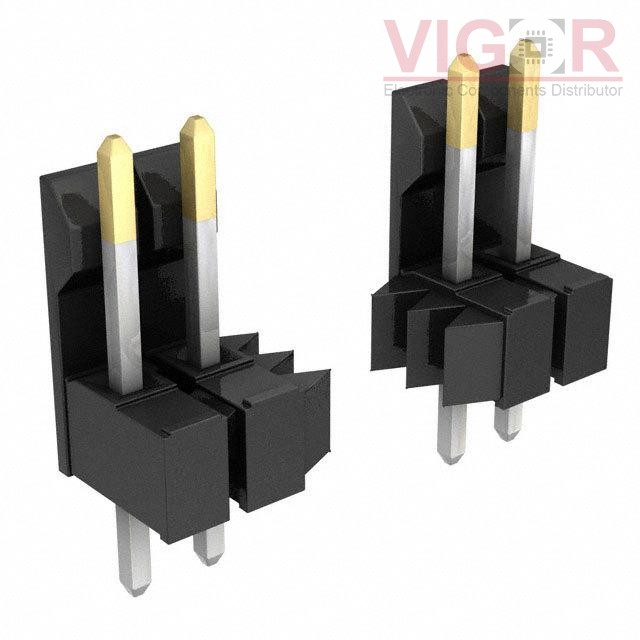

Image is for reference,
please contact us to get the real picture

Part No :

0422271059

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 24POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
0422271059 PDF
Availability
0 pieces
Unit Price
$2.09748

Current price of 0422271059 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0422271059 Specifications
Type Description
Series:KK254, 42227
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:24
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.180" (4.57mm)
Overall Contact Length:0.600" (15.24mm)
Insulation Height:0.337" (8.56mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
