140-503-415-001

140-503-415-001

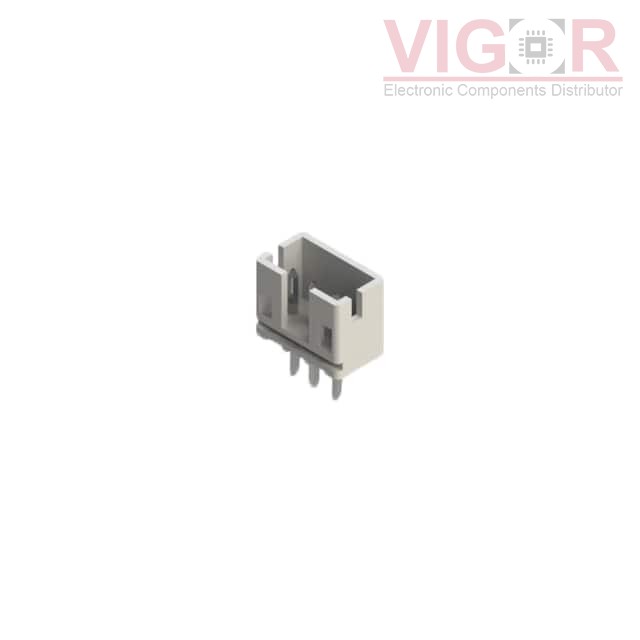

Image is for reference,
please contact us to get the real picture

Part No :

140-503-415-001

Manufacturer
EDAC Inc.
Description
2.0MM PITCH CONNECTOR WITH 3 P.C
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
140-503-415-001 PDF
Availability
5000 pieces
Unit Price
$0.16000

Current price of 140-503-415-001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

140-503-415-001 Specifications
Type Description
Series:140
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.240" (6.10mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100VAC/DC
