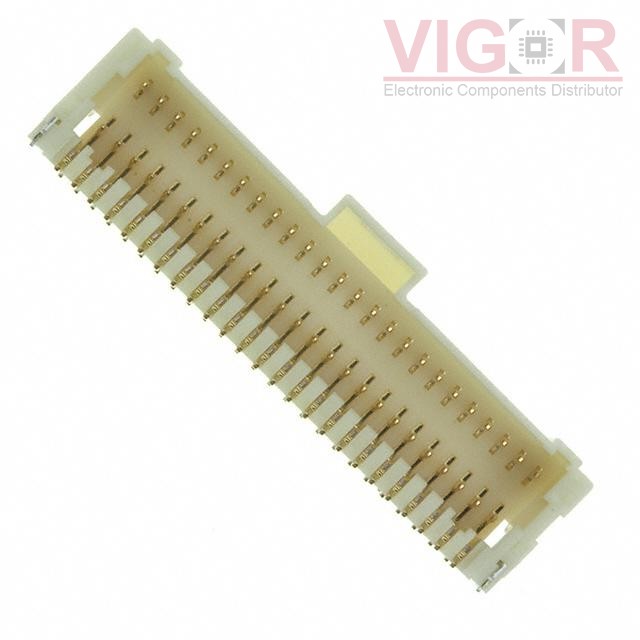

5015715007

5015715007

Image is for reference,
please contact us to get the real picture

Part No :

5015715007

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD R/A 50POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
5015715007 PDF
Availability
4187 pieces
Unit Price
$2.83000

Current price of 5015715007 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5015715007 Specifications
Type Description
Series:Pico-Clasp 501571
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:50
Number of Rows:2
Row Spacing - Mating:0.105" (2.66mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.325" (8.25mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TSM-124-01-L-DV-P

TSM-124-01-L-DV-P

CONN HEADER SMD 48POS 2.54MM
HOT FTE-177-01-G-DV

FTE-177-01-G-DV

CONN HEADER SMD 154POS 0.8MM

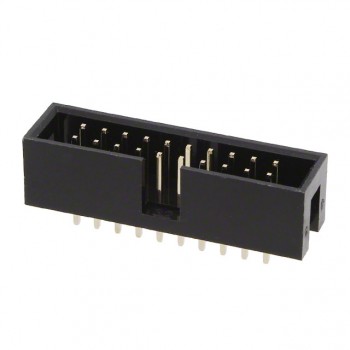

HOT 61202021621
