5499923-1

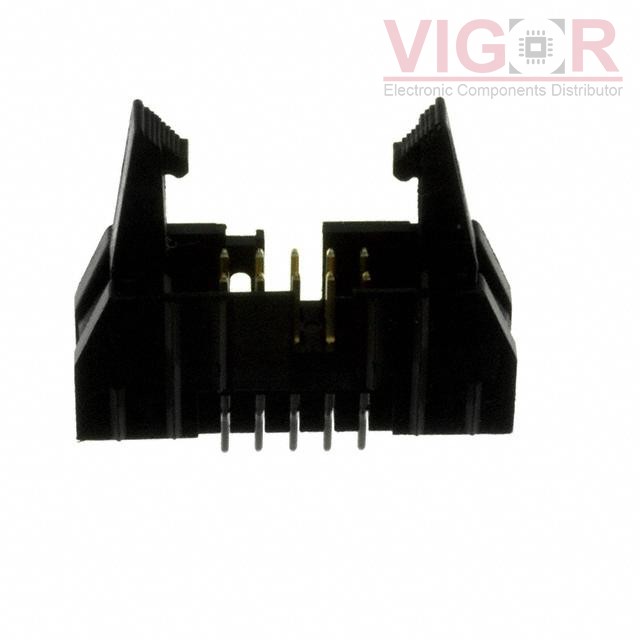

Image is for reference,
please contact us to get the real picture

Part No :: 5499923-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 10POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: 5499923-1 PDF

Availability: 319 pieces

Unit Price: ~~$3.51000~~

Current price of 5499923-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5499923-1 Specifications

Type	Description
Series:	AMP-Latch
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks, Long
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.155" (3.94mm)
Overall Contact Length:	0.684" (17.37mm)
Insulation Height:	0.549" (13.94mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold-Palladium
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	-
Features:	Keying Slot, Mounting Flange
Operating Temperature:	-65°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	250VAC
