1054302203

1054302203

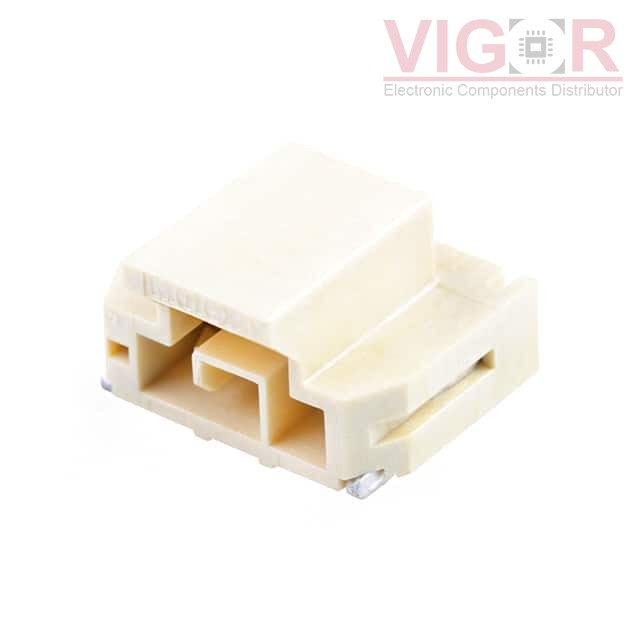

Image is for reference,
please contact us to get the real picture

Part No :

1054302203

Manufacturer
Woodhead - Molex
Description
NANO-FIT HDR SMT RA SGL 3CKT 15A
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
1054302203 PDF
Availability
0 pieces
Unit Price
$1.36561

Current price of 1054302203 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1054302203 Specifications
Type Description
Series:Nano-Fit 105430
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.776" (19.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-40°C ~ 115°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):4A
Voltage Rating:250VAC
