Type | Description |
---|---|
Series: | MTA-100 |
Package: | Bulk |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 10 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Friction Lock |
Contact Length - Mating: | 0.200" (5.08mm) |
Contact Length - Post: | 0.140" (3.56mm) |
Overall Contact Length: | 0.440" (11.18mm) |
Insulation Height: | 0.410" (10.41mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Copper Alloy |
Insulation Material: | Polyester |
Features: | Board Guide |
Operating Temperature: | -55°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | Varies by Wire Gauge |
Voltage Rating: | 250VAC |

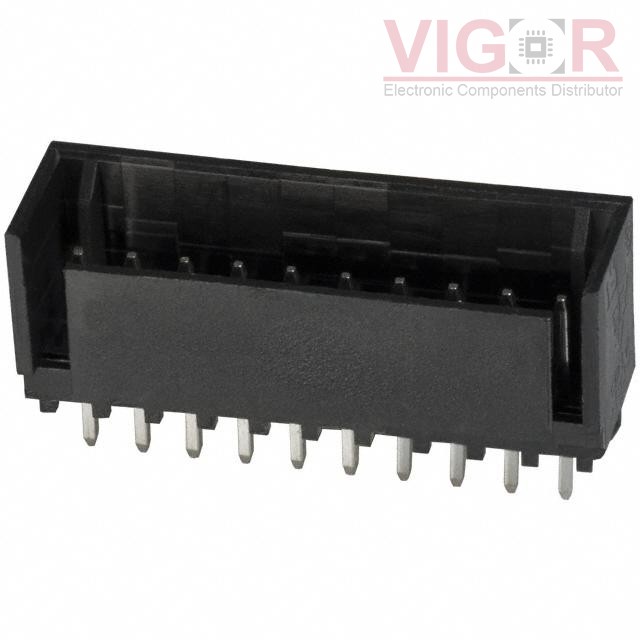

CONN HEADER VERT 10POS 2.54MM
