TSM-102-01-SS-DV-A

TSM-102-01-SS-DV-A

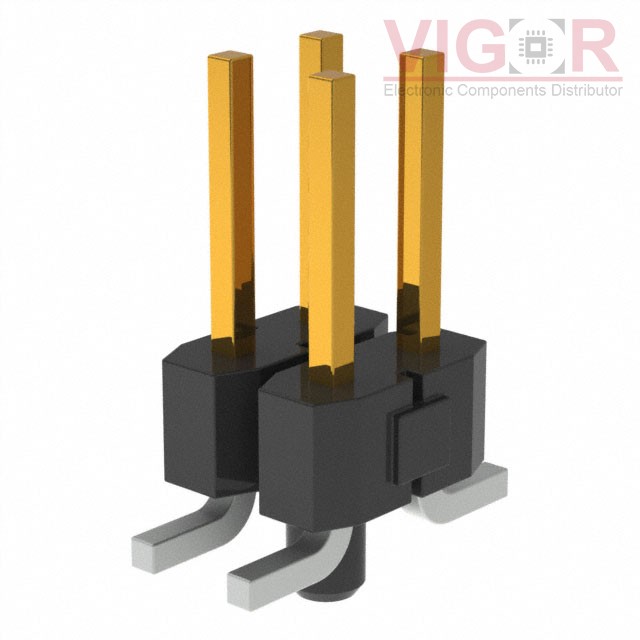

Image is for reference,
please contact us to get the real picture

Part No :

TSM-102-01-SS-DV-A

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 4POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TSM-102-01-SS-DV-A PDF
Availability
0 pieces
Unit Price
$1.72000

Current price of TSM-102-01-SS-DV-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM-102-01-SS-DV-A Specifications
Type Description
Series:TSM
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:4
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
