86130142113345E1LF

86130142113345E1LF

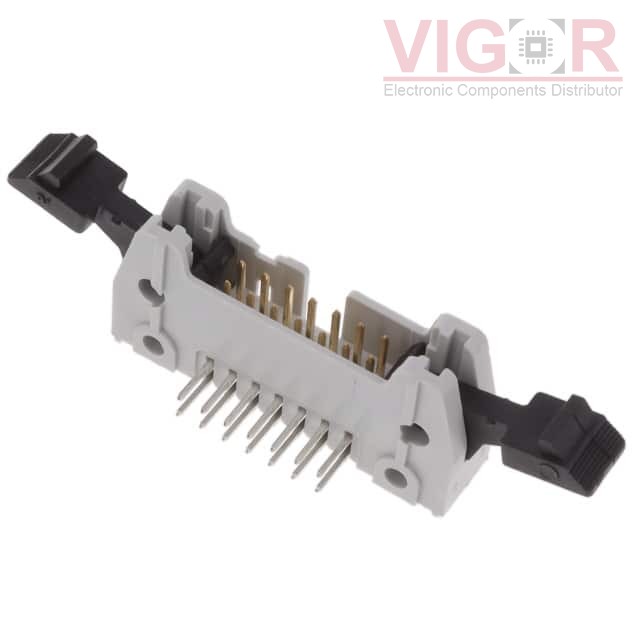

Image is for reference,
please contact us to get the real picture

Part No :

86130142113345E1LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER R/A 14POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
86130142113345E1LF PDF
Availability
0 pieces
Unit Price
$0.75000

Current price of 86130142113345E1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

86130142113345E1LF Specifications
Type Description
Series:Quickie™
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.165" (4.19mm)
Overall Contact Length:-
Insulation Height:0.344" (8.75mm)
Contact Shape:Circular
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:250V
