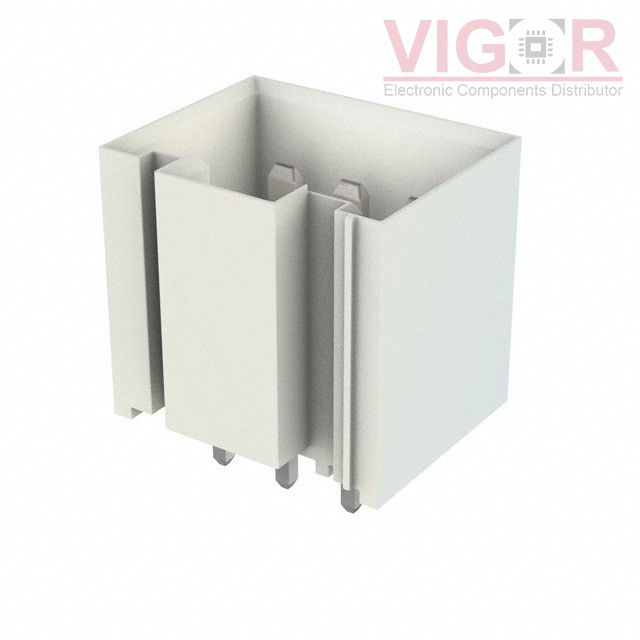

MDF6-6DP-3.5DSA(05)

MDF6-6DP-3.5DSA(05)

Image is for reference,
please contact us to get the real picture

Part No :

MDF6-6DP-3.5DSA(05)

Manufacturer
Hirose
Description
CONN HEADER VERT 6POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
MDF6-6DP-3.5DSA(05) PDF
Availability
0 pieces
Unit Price
$0.96000

Current price of MDF6-6DP-3.5DSA(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MDF6-6DP-3.5DSA(05) Specifications
Type Description
Series:MDF6
Package:Bulk
Part Status:Last Time Buy
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.197" (5.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.220" (5.59mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.512" (13.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Copper
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):-
Voltage Rating:300V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TSM-110-02-G-DV-P-TR

TSM-110-02-G-DV-P-TR

CONN HEADER SMD 20POS 2.54MM

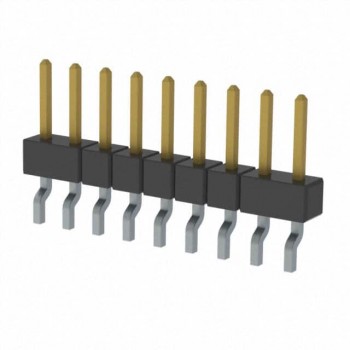

HOT MMT-109-02-S-SH

MMT-109-02-S-SH

CONN HEADER SMD R/A 9POS 2MM

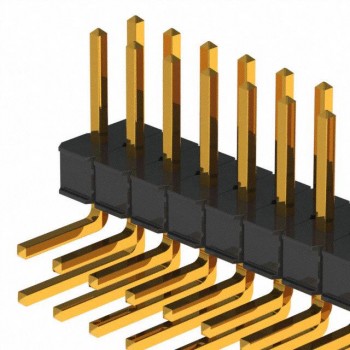

HOT 929667-04-14-I
