Current price of GT8E-2P-DSA(11) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | GT8E |
Package: | Tray |
Part Status: | Last Time Buy |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.079" (2.00mm) |
Number of Positions: | 2 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Latch Lock |
Contact Length - Mating: | - |
Contact Length - Post: | 0.118" (3.00mm) |
Overall Contact Length: | - |
Insulation Height: | 0.476" (12.10mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Brass |
Insulation Material: | Polybutylene Terephthalate (PBT) |
Features: | Board Guide |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | - |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |

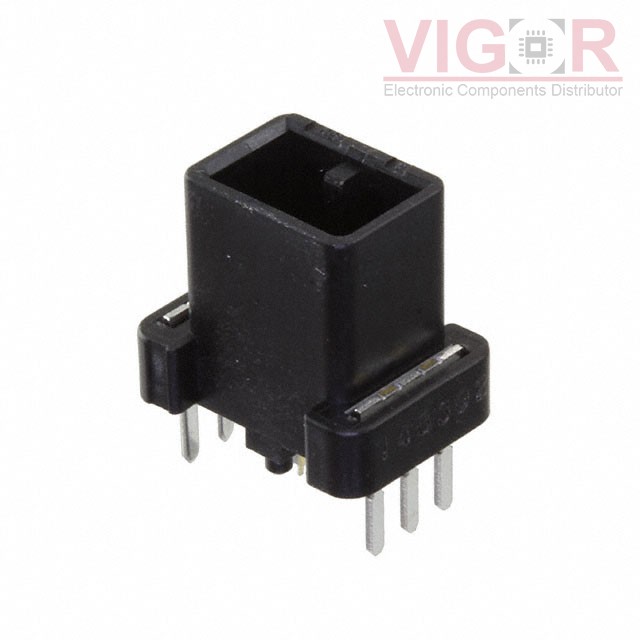

CONN HEADER VERT 2POS 2MM
