IPL1-109-02-F-D-K

IPL1-109-02-F-D-K

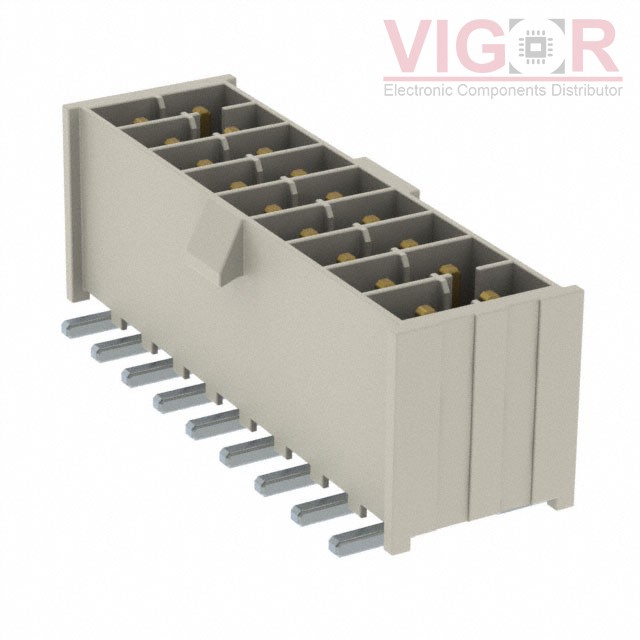

Image is for reference,
please contact us to get the real picture

Part No :

IPL1-109-02-F-D-K

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 18POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
IPL1-109-02-F-D-K PDF
Availability
0 pieces
Unit Price
$2.69568

Current price of IPL1-109-02-F-D-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPL1-109-02-F-D-K Specifications
Type Description
Series:Mini Mate® IPL1
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:18
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.215" (5.46mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.320" (8.13mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.00µin (0.076µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:675VAC, 954VDC
