TS-117-T-A

TS-117-T-A

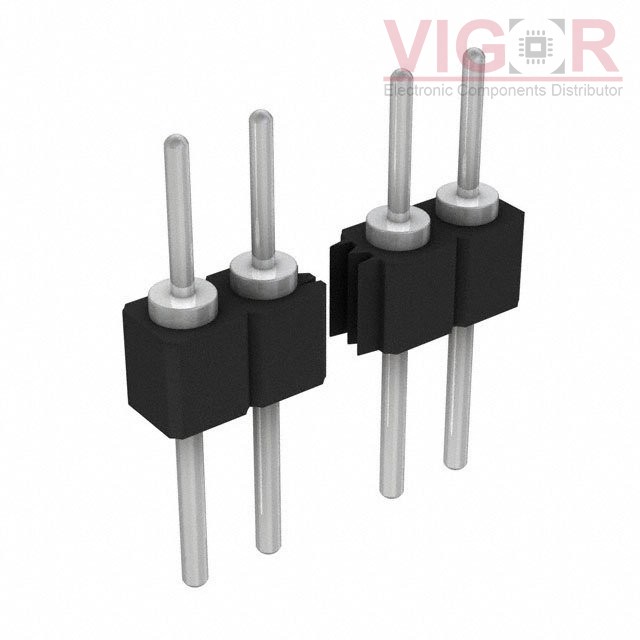

Image is for reference,
please contact us to get the real picture

Part No :

TS-117-T-A

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 17POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TS-117-T-A PDF
Availability
0 pieces
Unit Price
$2.60000

Current price of TS-117-T-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TS-117-T-A Specifications
Type Description
Series:TS
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:17
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.166" (4.22mm)
Contact Length - Post:0.156" (3.96mm)
Overall Contact Length:0.477" (12.12mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:200.0µin (5.08µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
