TLW-103-05-T-D

TLW-103-05-T-D

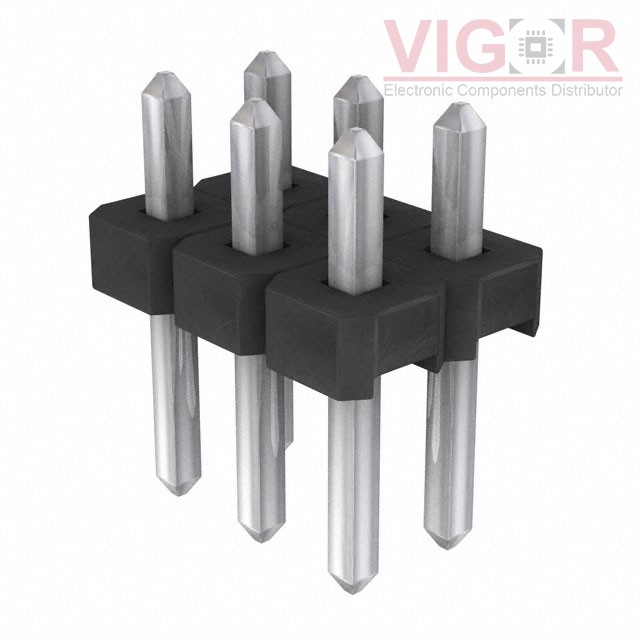

Image is for reference,
please contact us to get the real picture

Part No :

TLW-103-05-T-D

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 6POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
TLW-103-05-T-D PDF
Availability
0 pieces
Unit Price
$0.78000

Current price of TLW-103-05-T-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLW-103-05-T-D Specifications
Type Description
Series:Flex Stack, TLW
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.105" (2.67mm)
Contact Length - Post:0.170" (4.32mm)
Overall Contact Length:0.335" (8.51mm)
Insulation Height:0.060" (1.52mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):5.2A per Contact
Voltage Rating:-
