77311-422-09LF

77311-422-09LF

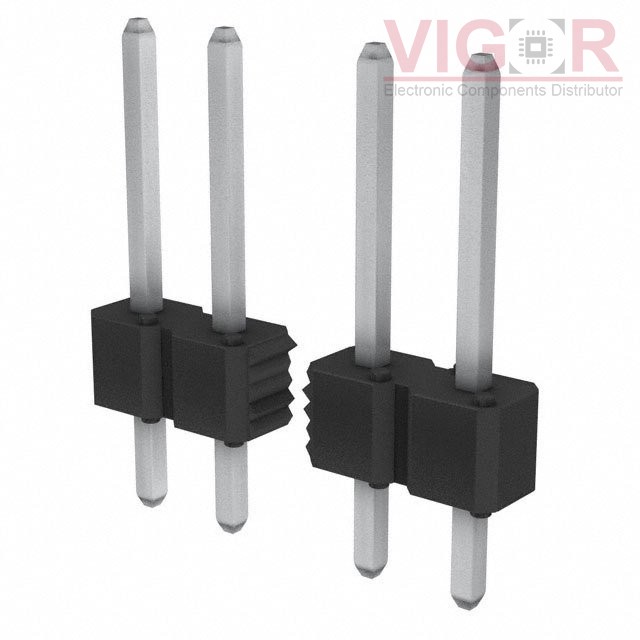

Image is for reference,
please contact us to get the real picture

Part No :

77311-422-09LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER VERT 9POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
77311-422-09LF PDF
Availability
0 pieces
Unit Price
$0.39831

Current price of 77311-422-09LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77311-422-09LF Specifications
Type Description
Series:BERGSTIK®
Package:Bag
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.305" (7.75mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.525" (13.34mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
