M20-8900805

M20-8900805

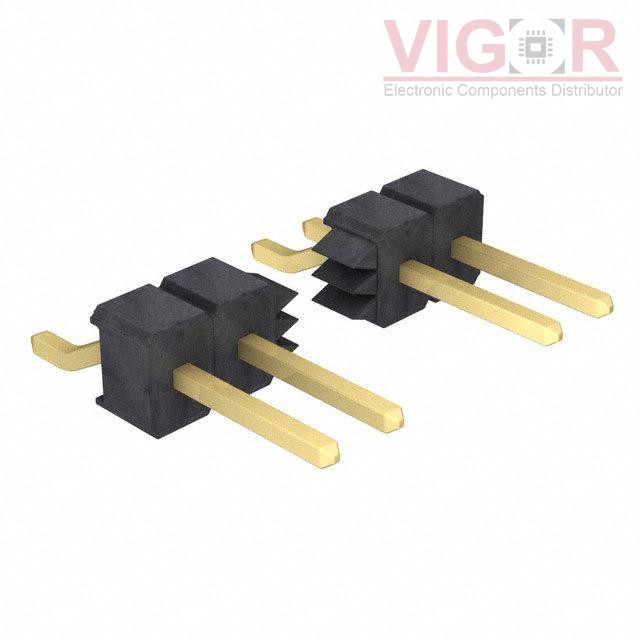

Image is for reference,
please contact us to get the real picture

Part No :

M20-8900805

Manufacturer
Harwin
Description
CONN HEADER SMD R/A 8POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
M20-8900805 PDF
Availability
0 pieces
Unit Price
$0.49950

Current price of M20-8900805 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M20-8900805 Specifications
Type Description
Series:M20
Package:Bulk
Part Status:Active
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.136" (3.46mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A per Contact
Voltage Rating:-
