20021121-00086D8LF

20021121-00086D8LF

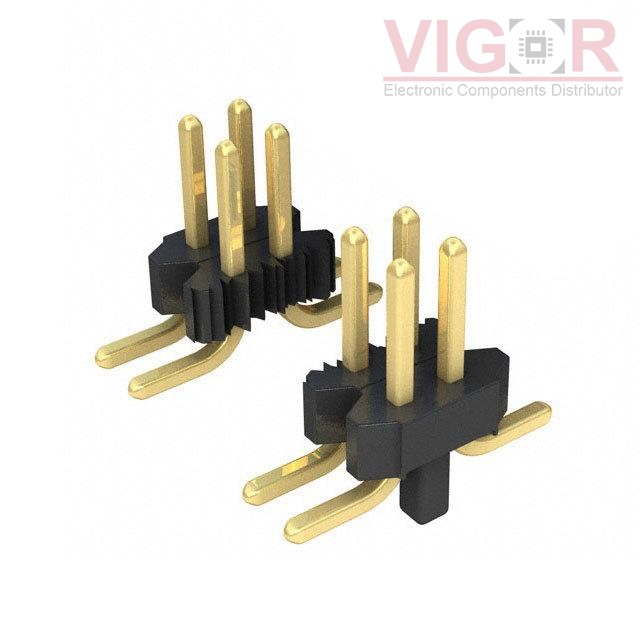

Image is for reference,
please contact us to get the real picture

Part No :

20021121-00086D8LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER SMD 86POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
20021121-00086D8LF PDF
Availability
0 pieces
Unit Price
$4.16653

Current price of 20021121-00086D8LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

20021121-00086D8LF Specifications
Type Description
Series:Minitek127® 1.27mm
Package:Tube
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:86
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:Square
Contact Finish - Mating:Gold, GXT™
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Pick and Place
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
