292174-5

292174-5

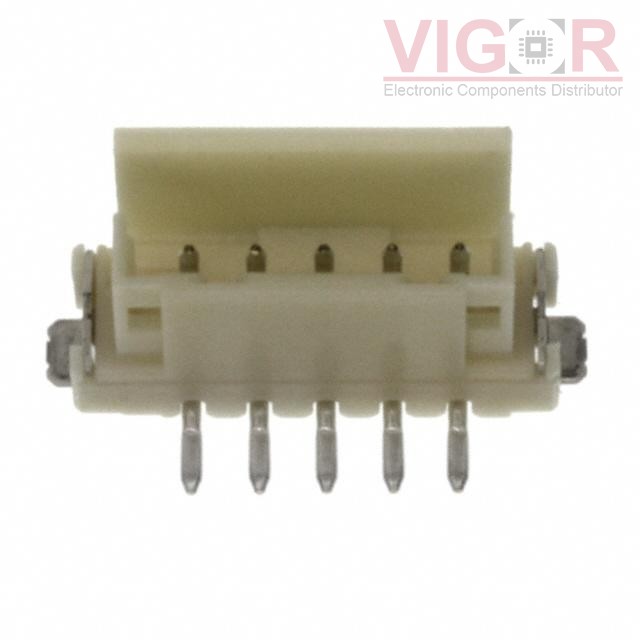

Image is for reference,
please contact us to get the real picture

Part No :

292174-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER SMD 5POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
292174-5 PDF
Availability
6824 pieces
Unit Price
$1.50000

Current price of 292174-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

292174-5 Specifications
Type Description
Series:CT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.177" (4.50mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.307" (7.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide, Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:125VAC
