IL-AG5-22P-D3L2

Image is for reference,
please contact us to get the real picture

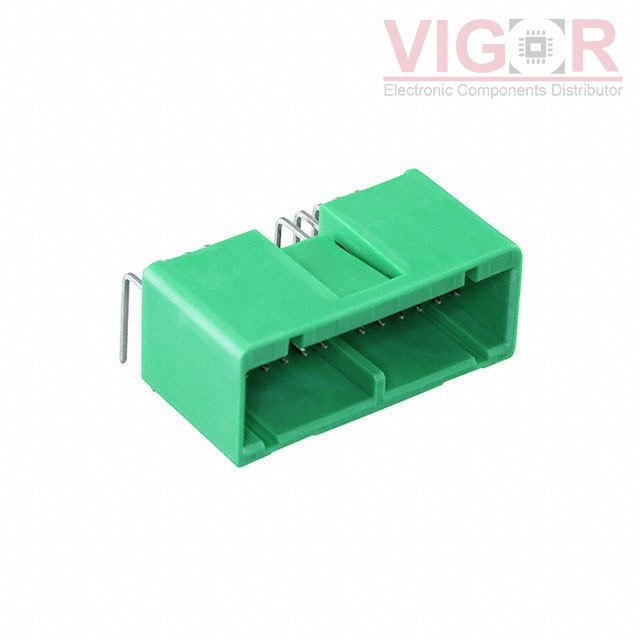

Part No :: IL-AG5-22P-D3L2

Manufacturer: JAE Electronics

Description: CONN HEADER R/A 22POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: IL-AG5-22P-D3L2 PDF

Availability: 1072 pieces

Unit Price: ~~$2.67000~~

Current price of IL-AG5-22P-D3L2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IL-AG5-22P-D3L2 Specifications

Type	Description
Series:	IL-AG5
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	22
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.331" (8.40mm)
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.591" (15.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Board Guide
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Green
Current Rating (Amps):	3A per Contact
Voltage Rating:	-
