1-2229803-1

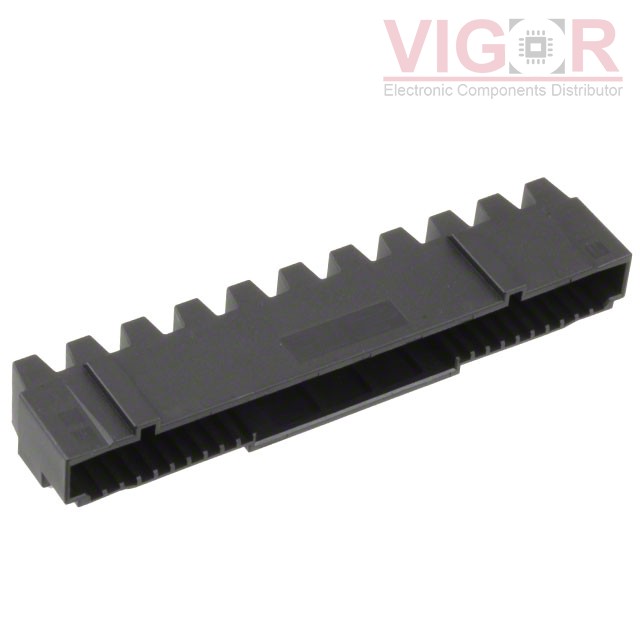

Image is for reference,
please contact us to get the real picture

Part No :: 1-2229803-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 11POS 7.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: 1-2229803-1 PDF

Availability: 0 pieces

Unit Price: ~~$2.25523~~

Current price of 1-2229803-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-2229803-1 Specifications

Type	Description
Series:	Dynamic D-3950
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.295" (7.50mm)
Number of Positions:	11
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.472" (12.00mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	600V
