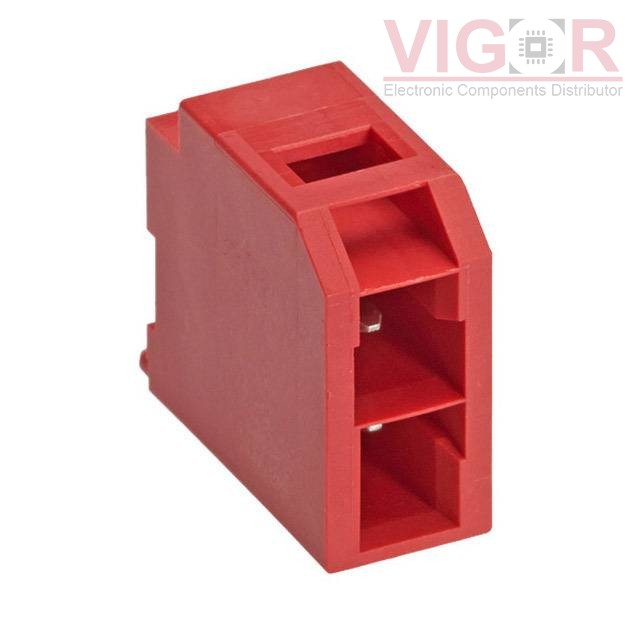

Current price of 1510482209 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | CP-6.5 151048 |
Package: | Tube |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | - |
Number of Positions: | 2 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.256" (6.50mm) |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Kinked Pin, Solder |
Fastening Type: | Latch Holder |
Contact Length - Mating: | 0.348" (8.85mm) |
Contact Length - Post: | 0.150" (3.81mm) |
Overall Contact Length: | - |
Insulation Height: | 0.630" (16.00mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | 50.0µin (1.27µm) |
Contact Finish - Post: | Tin |
Contact Material: | Copper Alloy |
Insulation Material: | Polyamide (PA), Nylon, Glass Filled |
Features: | Board Guide |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Red |
Current Rating (Amps): | - |
Voltage Rating: | - |
