54102-S30-20

54102-S30-20

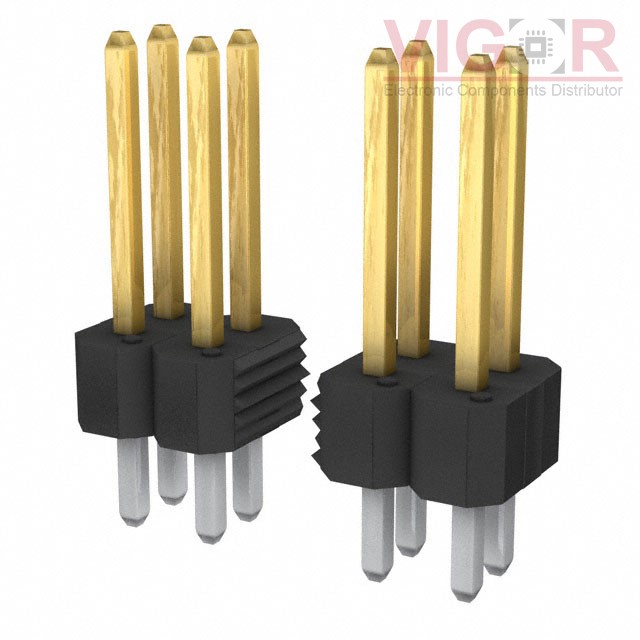

Image is for reference,
please contact us to get the real picture

Part No :

54102-S30-20

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER VERT 40POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
54102-S30-20 PDF
Availability
0 pieces
Unit Price
$1.72854

Current price of 54102-S30-20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

54102-S30-20 Specifications
Type Description
Series:BERGSTIK®
Package:Bag
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.318" (8.08mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.538" (13.67mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold, GXT™
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:-
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
