2026560021

2026560021

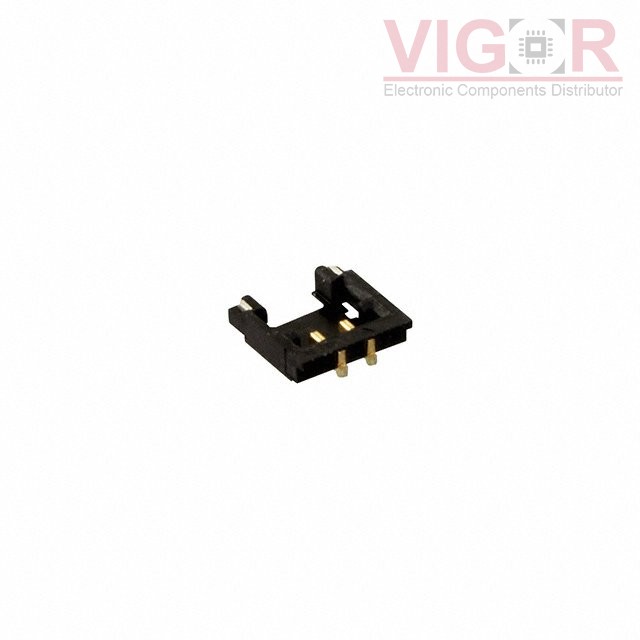

Image is for reference,
please contact us to get the real picture

Part No :

2026560021

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD 2POS 1.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
2026560021 PDF
Availability
41391 pieces
Unit Price
$0.43000

Current price of 2026560021 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2026560021 Specifications
Type Description
Series:Pico-EZmate Slim 202656
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Plug
Contact Type:Tab
Pitch - Mating:0.047" (1.20mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.042" (1.06mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.047" (1.20mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1.5A
Voltage Rating:50V
