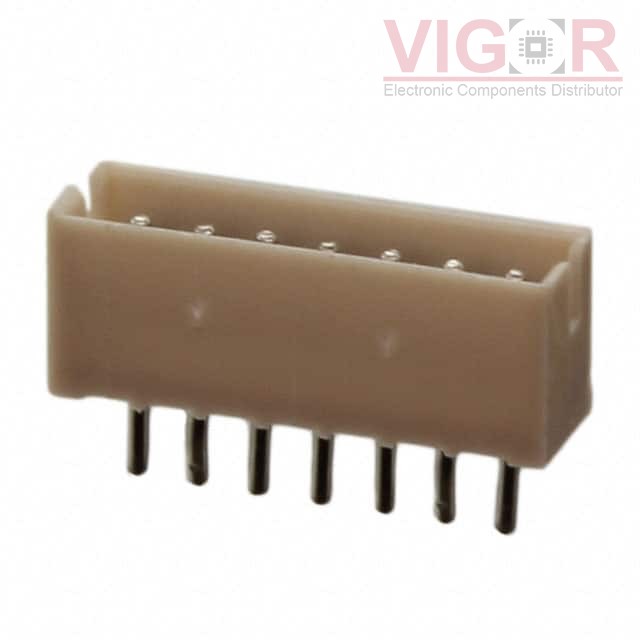

15SH-A-07-TS-SMT-T/R

15SH-A-07-TS-SMT-T/R

Image is for reference,
please contact us to get the real picture

Part No :

15SH-A-07-TS-SMT-T/R

Manufacturer
Adam Tech
Description
CONN HEADER SMD 7POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
15SH-A-07-TS-SMT-T/R PDF
Availability
1000 pieces
Unit Price
$0.75000

Current price of 15SH-A-07-TS-SMT-T/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

15SH-A-07-TS-SMT-T/R Specifications
Type Description
Series:15SH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.197" (5.00mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic, Glass Filled
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):0.7A
Voltage Rating:50VAC/DC
