10157547-0015SR1LF

10157547-0015SR1LF

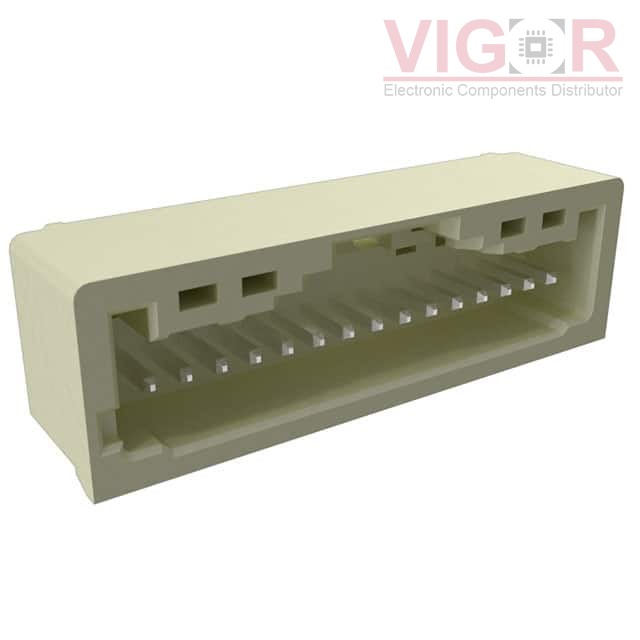

Image is for reference,
please contact us to get the real picture

Part No :

10157547-0015SR1LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
MINITEK MULTIPITCH 1.25MM RA SMT
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
10157547-0015SR1LF PDF
Availability
500 pieces
Unit Price
$1.05000

Current price of 10157547-0015SR1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10157547-0015SR1LF Specifications
Type Description
Series:Minitek® Multipitch™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.274" (6.96mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A per Contact
Voltage Rating:50VAC/DC
