1-2132415-5

1-2132415-5

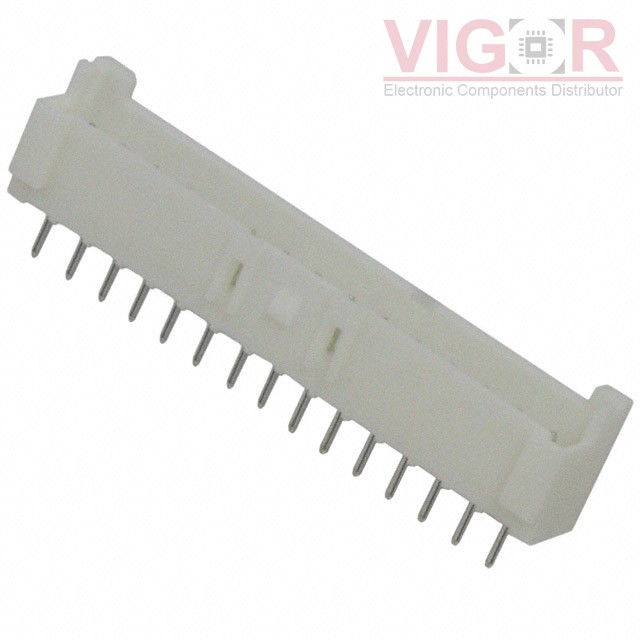

Image is for reference,
please contact us to get the real picture

Part No :

1-2132415-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 15POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
1-2132415-5 PDF
Availability
0 pieces
Unit Price
$0.33060

Current price of 1-2132415-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-2132415-5 Specifications
Type Description
Series:Economy Power 2.5
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:15
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.141" (3.60mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.346" (8.80mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:80.0µin (2.03µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):4.2A
Voltage Rating:250VAC
