3-178140-5

3-178140-5

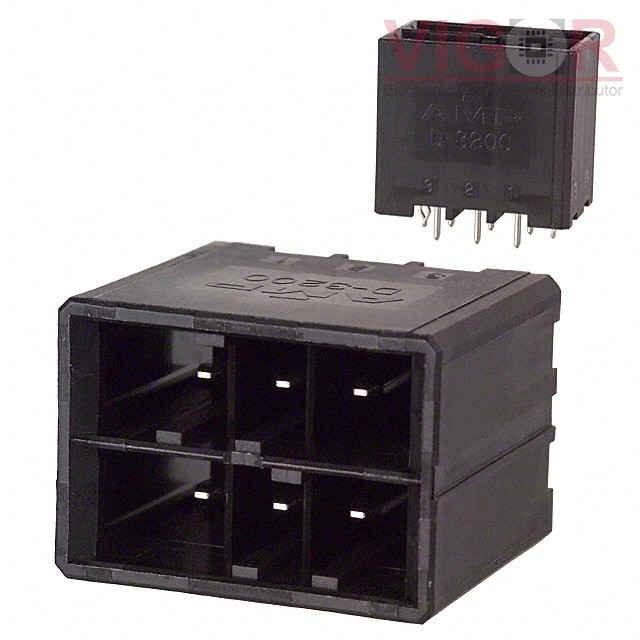

Image is for reference,
please contact us to get the real picture

Part No :

3-178140-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 6POS 5.08MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
3-178140-5 PDF
Availability
68 pieces
Unit Price
$2.23000

Current price of 3-178140-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3-178140-5 Specifications
Type Description
Series:Dynamic D-3200
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.200" (5.08mm)
Number of Positions:6
Number of Rows:2
Row Spacing - Mating:0.300" (7.62mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.850" (21.59mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:600V
