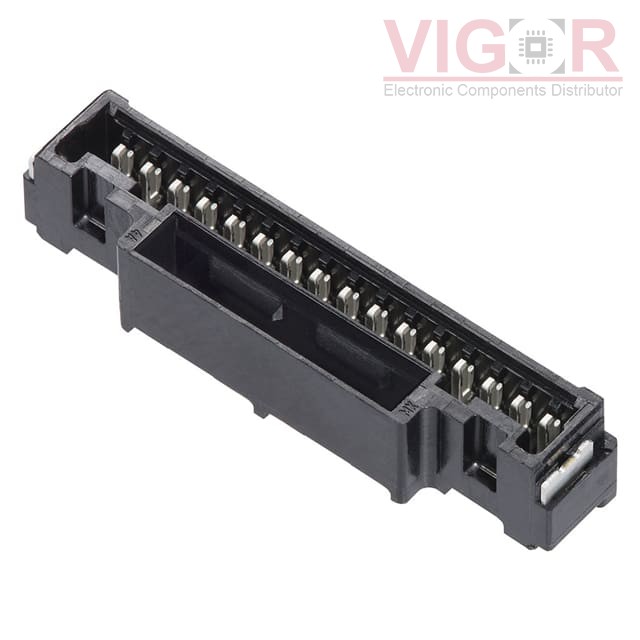

Image is for reference,
please contact us to get the real picture

Part No :

2059570871

Manufacturer
Woodhead - Molex
Description
1.25WB MLP PTG SR ST ASSY 8CKT E
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
2059570871 PDF
Availability
965 pieces
Unit Price
$1.09000

Current price of 2059570871 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2059570871 Specifications
Type Description
Series:Micro-Lock PLUS 205957
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.206" (5.23mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Bismuth
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin-Bismuth
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Lock, Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50V
